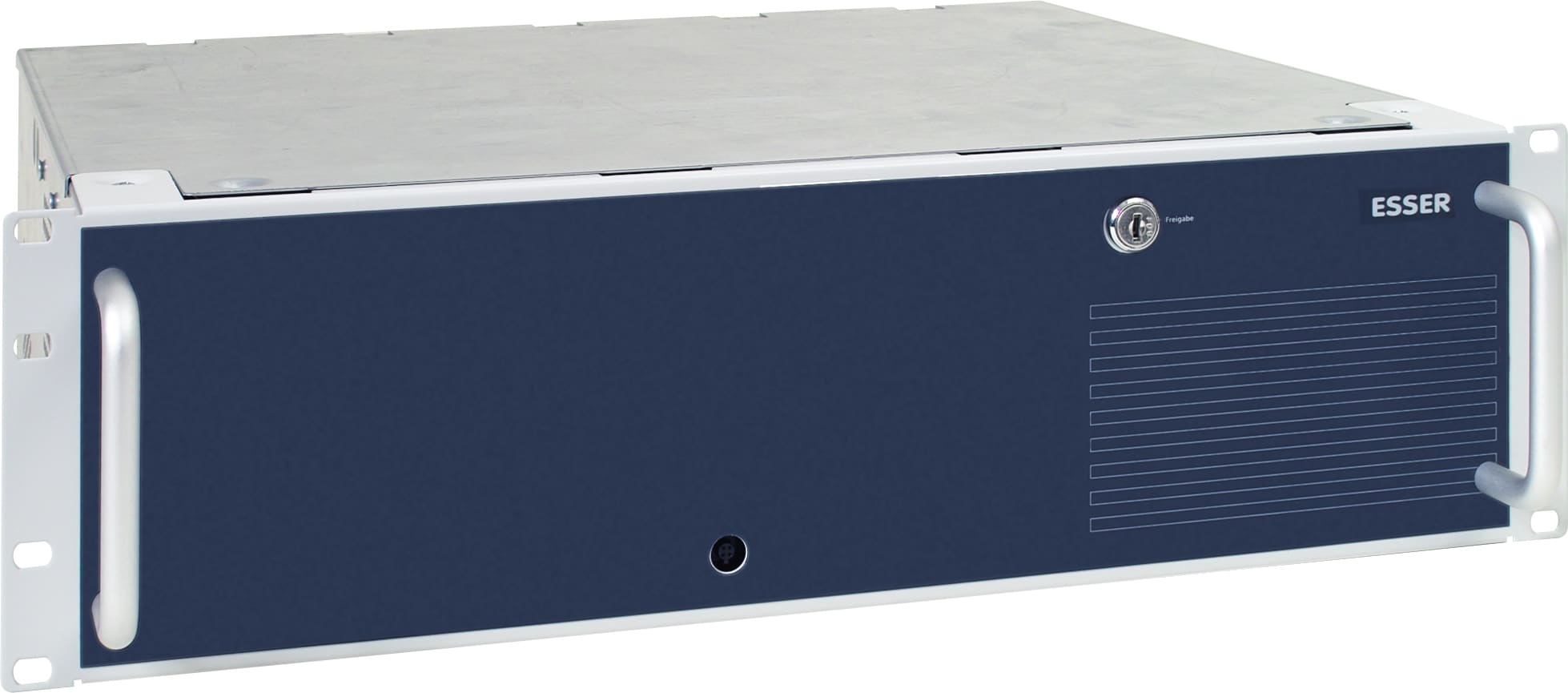

Extinguishing control panel, Series 4

788015.40

Approval: VdS

Addressable EN 12094-1 extinguishing panel for extinguishing zone control in compliance with VdS 2496, with integrated fire detection unit and optional convenient operating and indicating panel. The slide-in concept enables space-saving, ergonomic integration into a 19" housing for installation heights of only 3 height units (13.34 cm). Peripherals are connected at the back of the housing via plug-in cable connections to accessible connection terminals, allowing convenient installation within the housing before the insert is integrated. With the communication transponder (Part No. 808615), a maximum of eight extinguishing control panels can be networked on one esserbus or powered loop in fire alarm systems FACP 8000 or IQ8Control. Using the programming interface plugged to the front, the extinguishing panel settings can be adjusted to the specific requirements and information can be transferred for visualizing the master fire alarm system via the loop.

Features & Benefits
Technical Data
Accessories
Documents

8 detector zones for up to 30 series 9200 or IQ8Quad automatic fire detectors per detector zone (max. 25 detectors in two-detector dependency)
1 detector zone manual alarm
1 detector zone emergency stop
1 detector zone post flooding
1 detector zone blocked extinguishing system
1 control input buzzer off
1 control input reset control panel
8 monitorable relays 30 V DC /2A
3 floating relays 30 V DC /2A
2 relays for mains voltage 230 V (connection at the back)
Each output is protected by fuses
Electronically controlled exhauster control

Operating unit:

13 LED-indication with inscription fields for indicating activated outputs
Mechanical alarm counter
LED display to indicate the detector zone status
LED collective display
Keypad can be intuitively handled
Key operated switch for keypad activation
Emergency current supply 2 batteries 12 V/12 Ah (not supplied as standard)

Additional Information:
The use of heavy duty rails from the respective cabinet manufacturer is recommended for installation in 19" upright cabinets.

Battery capacity	2 x 12 V DC/12 Ah
Phase out date	01.01.2014
CE certificate	0786-CPD-20223
Housing	sheet steel
Storage temperature	-10 °C ... 50 °C
Rated frequency	50 ... 60 Hz
Rated voltage VAC	230
Rated current	0.7 A
Air humidity	< 95 % (non-condensing)
Quiescent current	approx. 100 mA
Type of protection	IP 30
Class of protection	I- as per DIN EN 60950
Ambient temperature	-5 °C ... 45 °C
VdS-Nr	G 205064
Dimensions	W: 483 mm H: 132 mm D: 403 mm (without grip)

788653 Terminal card for panel 8010 in 19-inch technology (3 HU), 1 m
788654 Terminal card for panel 8010 in 19-inch technology (3 UH), 2 m
