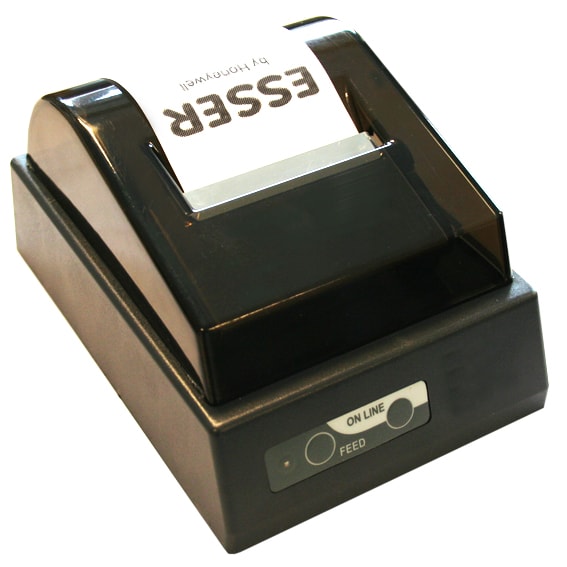

Compact control panel printer MEFA RS422

FX808353

Continuous printer as a parallel recording device on a FlexES Control fire alarm control panel. Power is supplied via an external power adapter or optionally from the FACP. The printer can be mounted as a table printer or, depending on the wall-mounting bracket, on the wall, next to the FACP.
The connection is made via the RS485 interface of the FlexES Control.
Operating voltage 12 ... 24 V DC
Weight kg approx. 0.55 kg
Rated frequency 50 ... 60 Hz
Rated voltage VAC 230 V AC
Quiescent current @ 12 V DC approx. 4 mA
Quiescent current @ 24 V DC approx. 3 mA
Current consumption @ 24 V DC approx. 900 mA
Dimensions W: 110 mm H: 85 mm D: 155 mm
  • Thermal paper 57 mm x 30 m
