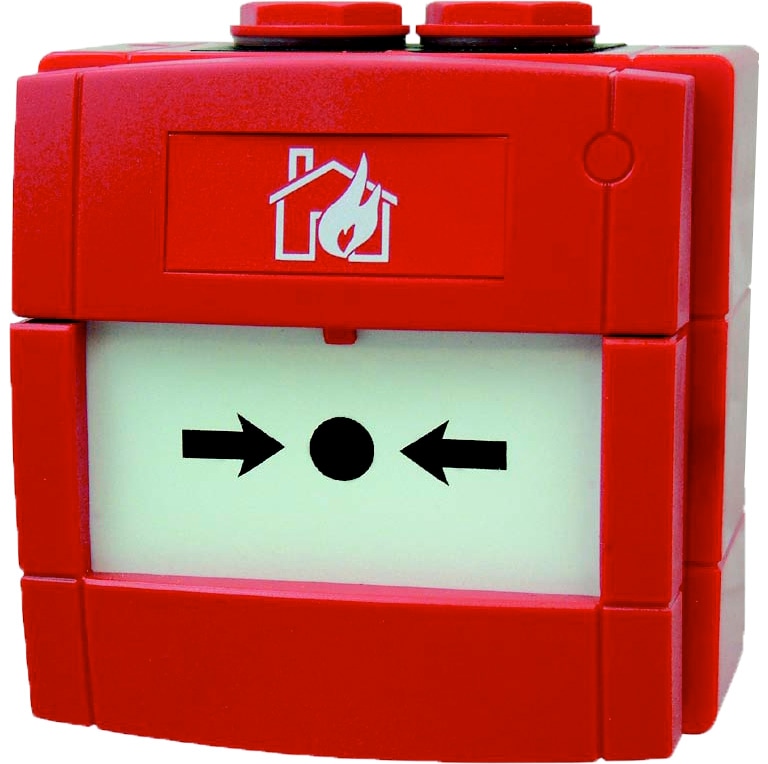

Manual call point IP67, small housing, red

706030

The outdoor MCP is an IP 67 sealed product. The enhanced environmental protection ​allows the unit to be installed in many external environments where water and dirt are likely ​to be present, making it a true waterproof and outdoor product.
The manual call point has a unique ‘plug and play’ concept designed specifically to reduce ​installation time. The product utilizes a special terminal block, where all initial installation ​cabling is terminated. This terminal block is then simply connected to the back of the MCP. ​The housing is supplied with three standard 20mm knock outs for cable entries, accom­modating all types of surface wiring installations.
The MCP also helps to preserve the integrity of the overall system as illegal removal of the ​product lid will result in the call point operating and the system triggering an alarm.
Scope of Delivery
1 x Cable gland included
Application temperature-30 °C ... 70 °C
Weight gapprox. 240 g
Storage temperature-30 °C ... 70 °C
MaterialPC/ABS
Detector specificationEN 54-11
Air humidity< 95 % non condensing
Type of protectionIP 67
Dimensions W: 97.5 mm H: 93 mm D: 71 mm
  • 706031 Spare glass pane (5 pcs)
  • 706032 Spare key
  • 706033 Plastic cover
