IQ8TAL with isolator, 1 contact IN/1 OUT

804868

Approval: VdS

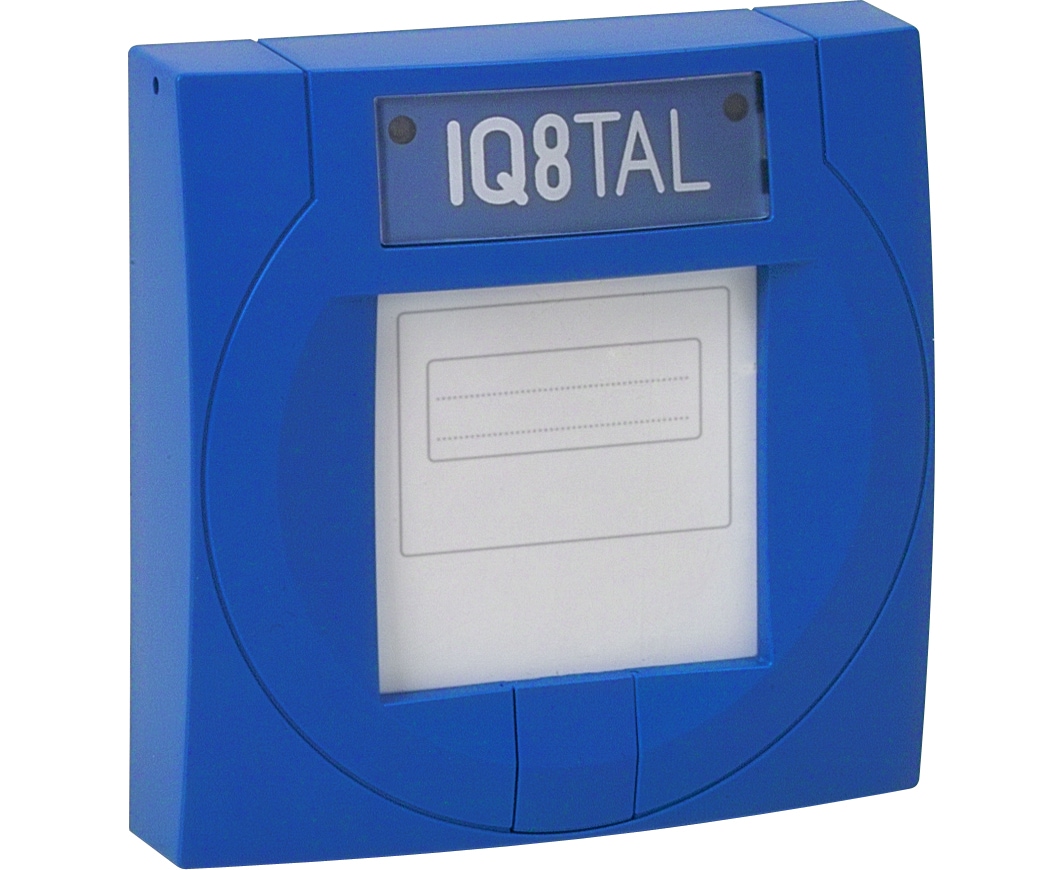

The IQ8TAL Technical Alarm Module is a fully-fledged loop device of the IQ8Control and FlexES Control fire detection system and facilitates the detection and forwarding of technical alarms.

The IQ8TAL is equipped with an integrated loop isolator, a contact input and a relay output. The relay can be optionally configured as a normally-closed contact or as a normally-open contact. The IQ8TAL does not need a separate voltage supply.

In order to increase the IP protection class, the optionalIP55 protection kit (Part No. 704965) can be used. The functionality of the IQ8TAL can be tested with the included key and the alarm status can be reset directly at the device.
  • One contact input and one floating relay output
  • Voltage supply via the field bus
  • Test and reset function
  • Higher IP protection
  • Programmable inverse monitoring functionality of the contact input
  • Total cable length of the monitoring input line up to 500 m
  • Integrated loop isolator
  • Max. 127 transponder TAL electronic modules per analog loop
  • DC/AC load switching by relay output

Additional Information:
Please note that for surface mounting, the mount housing (Part No. 704981) must be ordered separately. Compatible with all IQ8Control systems with firmware V3.08 and tools 8000 V1.14 or superior.

Scope of Delivery:

2 x 10 k (terminating), 1 x 1 k (alarm), 1 x 6.8 k (inverse operation)
Alarm displayred LED
Connection terminalmax. 2.5 mm² (AWG 26-14)
Application temperature-20 °C ... 70 °C
Operation indicatorgreen LED
CE certificate0786-CPD-20792
Colorblue, similar to RAL 5015
HousingPC/ASA plastic
Weight gapprox. 110 g
Contact load relay30 V DC/AC/1 A
Storage temperature-30 °C ... 75 °C
Air humidity< 95 % (non-condensing)
Quiescent current @ 19 V DCapprox. 45 μA
Type of protectionIP43 (in housing), IP55 (with cover 704965 and cable glands 704147/48)
SpecificationEN 54-18 / -17/-13
VdS-NrG 209138
DimensionsW: 88 mm H: 88 mm D: 57 mm (with surface-mounted housing)
  • 704965 Protective kit for MCP and TAL, transparent
  • 704981 Surface mount housing for small MCP and TAL, blue
