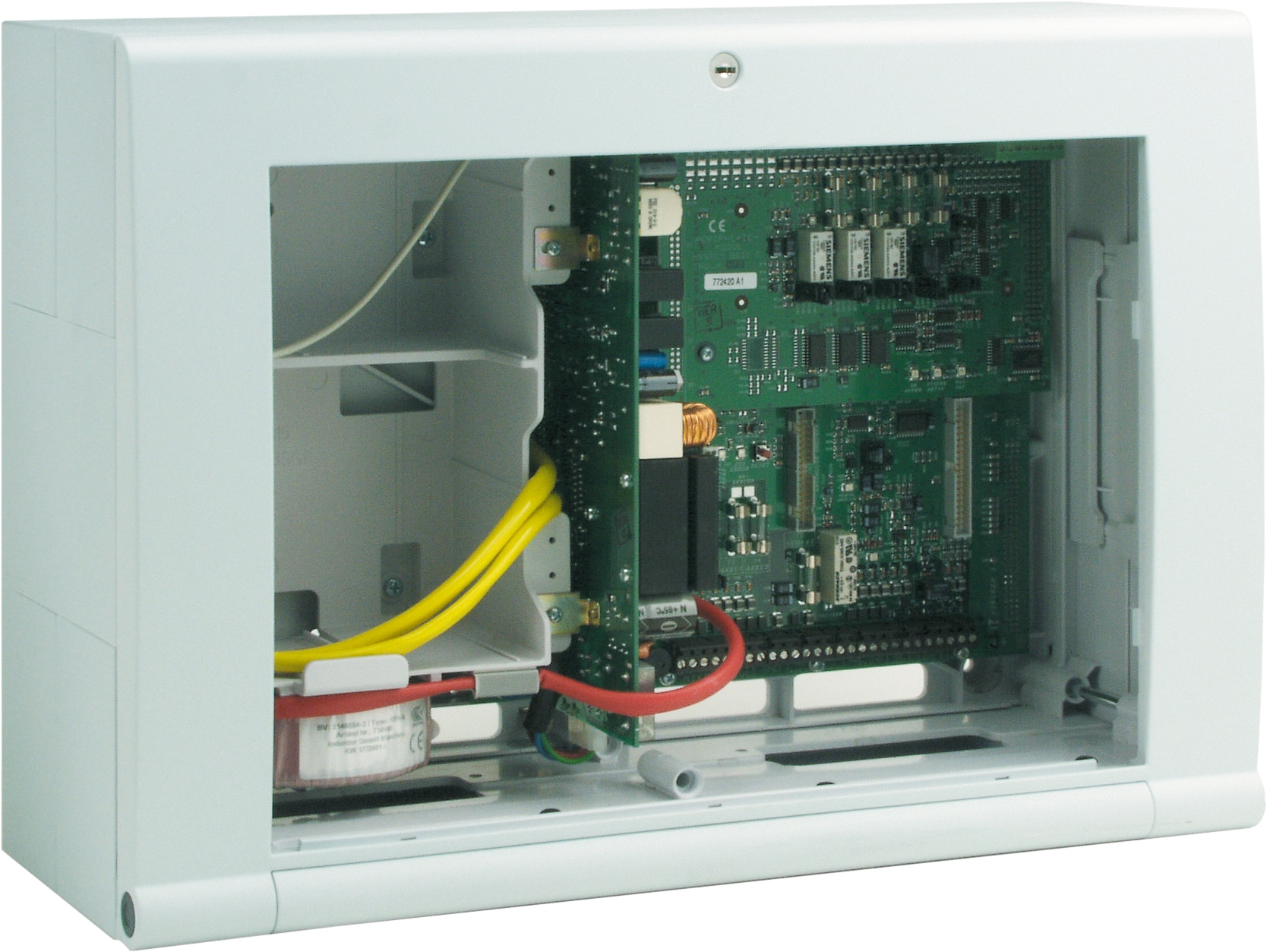

FACP IQ8Control C for 19" rack

808139

Approval: VdS, CNBOP, BOSEC

Same as 808003, but 19" version (7 HU) for rack installation.
  • Max. two micromodules
  • Max. two esserbus analog loop modules
  • Short circuit and open circuit resistant loop operation
  • Loop installation with I-Y(ST)Y 0.8 mm cable for a maximum length of 3,5 km
  • Up to 127 esserbus devices (fire detectors respectively manual call points)/detector zones per loop
  • Up to 32 esserbus transponders per loop/operation of wireless components (see chapter 10)
  • Operation types TM and PM as per DIN VDE 0833 - 2 to avoid unwanted alarms being triggered
  • Fire brigade operating panel and alarm transmission unit interface on the peripheral module
  • The common relays, freely programmable, monitored, floating for up to 24 V DC/1A (on the peripheral module)
  • TTY or RS485 interface
  • Intergration in the short circuit and open circuit resistant essernet network with up to 31 fire detection panels depends on transmission rate
  • Connection to graphical supervisor WINMAG via serial essernet interface (SET)
  • Operating panel with alphanumerical display
  • 4 x 40 backlit LCD display
  • Event memory for up to 10.000 events
  • All System 8000 micromodules are compatible
  • Printer interface for internal printer
  • Two batteries with monitoring circuit
  • Monitored input for external power supply unit
  • Additional features for powered loop
  • Max. two analog powered loop modules
  • Bus powered, synchronously controlled, acoustic alarm signaling devices as per DIN EN 54-3 with alarm tone as per DIN 33404
  • Up to 48 powered loop base sounders (series 9200) per loop
  • Up to 32 powered loop IQ8Alarm per loop
  • Up to 48 IQ8Quad with alarm device per loop


Additional Information:

The operating front must be ordered separately and is not included in the price.

Scope of Delivery:

FACP 808003 IQ8Control C, including 19" installation frame and flat cable for 19" installation.
CE certificate 0786-CPD-20827
Color gray similar to Pantone 538
Housing ABS, 10 % glass fiber reinforced, V - 0
Weight kg approx. 6.5 kg
Storage temperature -5 °C ... 50 °C
Rated frequency 50 ... 60 Hz
Rated voltage
230 V AC
Rated current 0.35 A (standard); 0.7 A (powered loop)
Air humidity < 95 % (non-condensing)
Quiescent current approx. 215 mA (basic configuration without operating unit)
approx. 295 mA (basic configuration with 1/4 VGA-operating unit)
Type of protection IP30
Current consumption for ext. devices 2 A
Ambient temperature -5 °C ... 45 °C
VdS class F
VdS-Nr G 205129
Dimensions W: 450 mm H: 320 mm D: 185 mm
